WS16 Circular Connector 10 Pin Plug And Socket Docking Connectors 7~10 Pins 5A 400V

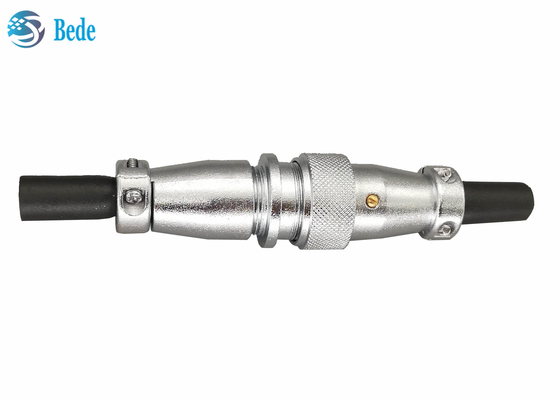

Large Image : WS16 Circular Connector 10 Pin Plug And Socket Docking Connectors 7~10 Pins 5A 400V

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	WS16-D-7/8/9/10

Payment & Shipping Terms:

Minimum Order Quantity:	100 sets
Price:	negotiation
Packaging Details:	100set per carton,packing in PE bag each
Delivery Time:	4 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	4000sets per day

Contact Now

Detailed Product Description

Housing Material:	Zinc Alloy With Chrome Plated	Contact Material:	Brass With Gold Plated
Insulation Materials:	PPS	Pins:	7/8/9/10
Rated Current:	5A	Rated Voltage:	400V
Applicable Temperature:	-40~+85℃	Applicable Wire:	18AWG
Highlight:	WS16 circular connector 10 pin , circular connector 10 pin 400V , 400V circular connector plug

WS16 Circular Connector Plug And Socket Docking Connectors 7~10 Pins 5A 400V

Description

Military grade male and female docking connectors,
Housing material is zinc alloy, chrome plated,
Insulation material is PPS plastic,Insulation resistance more than 2000MΩ
Contact material is copper with gold plated, excellent electrical conductivity and very low contact resistance
Applicable temperature range: -40~+85℃
Applicable cable: 18AWG, out diameter 6mm
Factory outlet, please pay attention to our MOQ 100 sets

Product Size

Female connector: ΦD=M18 L=47.5mm Φd max=10mm

Male connector: ΦD=21mm L=44.8mm Φd max=10mm

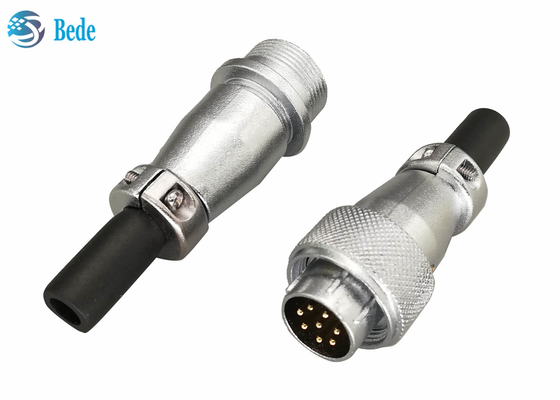

WS16 Circular Connector 10 Pin Plug And Socket Docking Connectors 7~10 Pins 5A 400V 0

Electrical data

pins	rated current	rated voltage	Withstand voltage	contact resistance	Insulation resistance
7 8 9 10	5A	500V	AC1500V*1min	5mΩ	2000MΩ

Similar product

This page is about WS16, WS20, WS24, WS28 on sales also, the series also includes panel mount mode, square flange mode, please feel free to contact us if you are interested

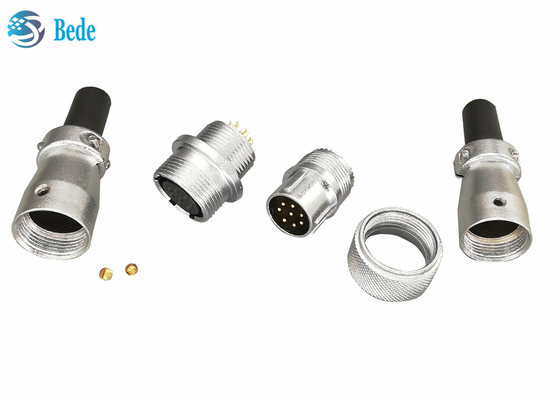

WS16 Circular Connector 10 Pin Plug And Socket Docking Connectors 7~10 Pins 5A 400V 1
