AISG Cables RET Control Cable D-Sub 9 Pin Male To AISG 8 Pin Female 10 Meter

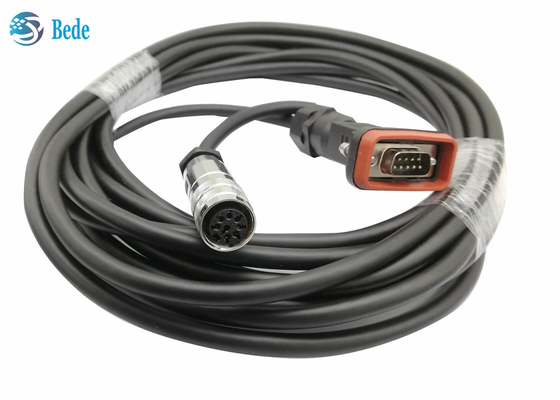

Large Image : AISG Cables RET Control Cable D-Sub 9 Pin Male To AISG 8 Pin Female 10 Meter

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	DB9

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiate
Packaging Details:	packing with PE bag, 30pcs per carton, 15kgs per carton
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	8000 pcs per week

Contact Now

Detailed Product Description

Length:	10 Meters	Standard Resistance:	≤5mΩ
Insulation Resistance:	5MΩ	Operating Voltage:	AC 250V
Operating Temperature:	-40℃ +85℃	Water Proof:	IP68
Highlight:	AISG Cables 10 Meter , D-Sub AISG Cables , D-Sub ret control cable

AISG Cables RET Control Cable D-Sub 9 Pin Male To AISG 8 Pin Female 10 Meter

Description

Directly connects RCU (Remote Control Unit) with RRU (Remote Radio Units) with this AISG cables, feeds data and power to RET(Remote Electrical Tilt) system components. Its widely used in 3G,4G and 5G networks, especially suitable for 3G,4G and 5G ESC antennas, tower amplifiers and base station equipment.

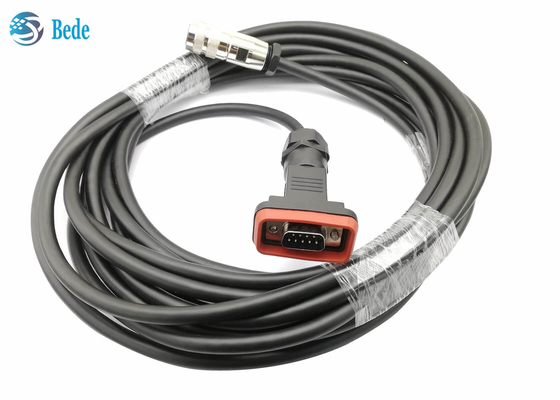

AISG Cables RET Control Cable D-Sub 9 Pin Male To AISG 8 Pin Female 10 Meter 0

Electrical Characteristics
Withstand voltage: 850V
Contact impedance: <5mΩ
Insulation resistance: 500MΩ
Rated voltage: 300V

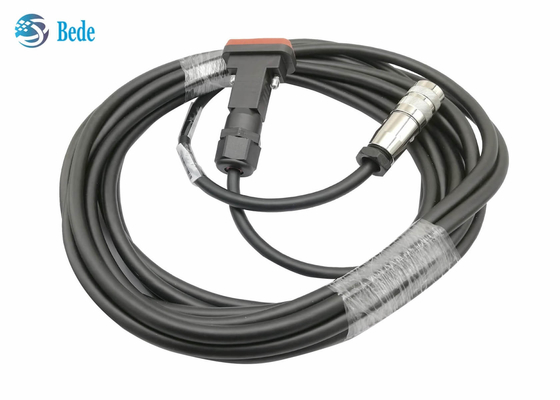

AISG Cables RET Control Cable D-Sub 9 Pin Male To AISG 8 Pin Female 10 Meter 1

Mechanical properties
Insertion force: 6PIN-45N max;
Pulling force: 6PIN-45N max;
Center Conductor Thrust: 6 lbs Min
Coupling Nut Capacity: 80 lbs (350 N) Min
Coupling Nut Torque: 10 lbs-in Min
Waterproof requirements: IP67
Mechanical life: 500 times

Environmental requirements

Applicable temperature	Flammability rating	Salt spray test	UV test
-40°C ~ +85°C	UL94-V0	168 Hours	UL1581 1000 hours
