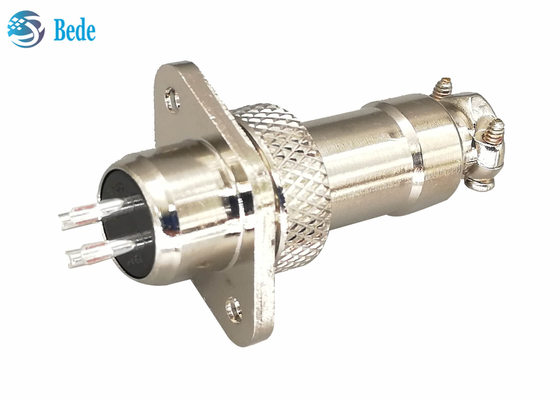

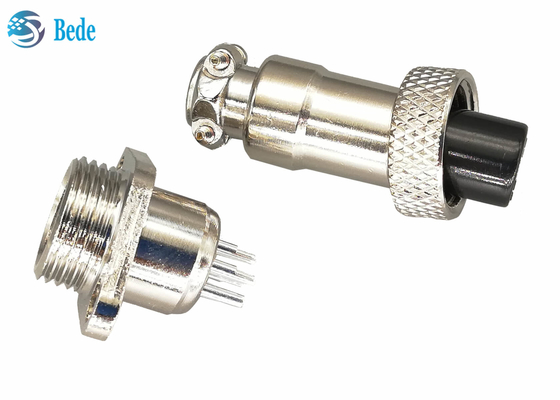

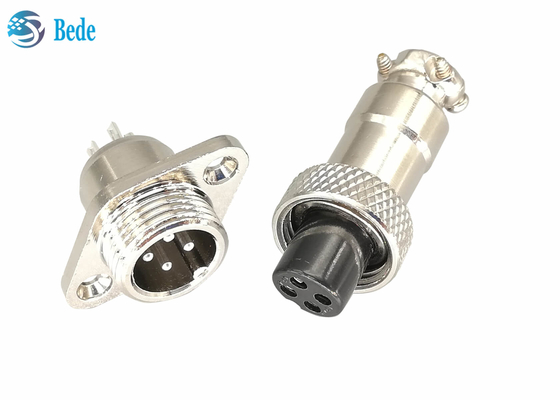

3A 200V GX12 M12 Aviation Connector Plug With Rhombus Flange Male And Female Sets

GX12 Aviation Connector With Rhombus Flange Male And Female Sets M12 3A 200V

Structure

1. Dust cover, choose whether to include this part according to your needs

2. Male connector, shell material is zinc alloy with nickel plated, pins material is brass with silver plated

3. Female connetor, insulator is bakelite maerial, pins material is brass with silver plated

4, Nut, zinc alloy material, fixed male and female after connection

5, housing, used for fixing female contact and wire, zinc alloy material with nickel plated

6. screws, washers and nuts for mounting the male connector on the panel, stainless steel material

Technology date

• Pins: 2 3 4 pin
• Rated current: 3A
• Rated voltage: 200V
• Insulation resistance: 1500MΩ
• Contact resistance: 0.003Ω
• Applicable temperature: -50℃ ~ +70℃
• Mounting hole size: M12
