2 Pin 16MM Circular Gx16 Aviation Connector Panel Mount Connector Male And Female Sets

Large Image : 2 Pin 16MM Circular Gx16 Aviation Connector Panel Mount Connector Male And Female Sets

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	RoHS
Model Number:	gx-16-2-s

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	negotiate
Packaging Details:	packing with PE bag, 80 pcs per carton
Delivery Time:	within 3days after payment
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	3000 set per day

Contact Now

Detailed Product Description

Highlight:

2 Pins Gx16 Aviation Connector

16MM gx16 2 pin connector

Gx16 panel mount connector

2 Pin 16MM Circular Connector Panel Mount Connector Male And Female Sets Gx16

Description

Material

Shell	contact	plastic core	screw
Zinc Alloy	Copper, silver palted	Bakelite	Stainless steel

Use environment

Ambient temperature	poles	Wiring Method	Panel Mounting Holes	service life
-20 ~ +85°C	2 pins	welding	M16	Plug and unplug ≥ 500 times

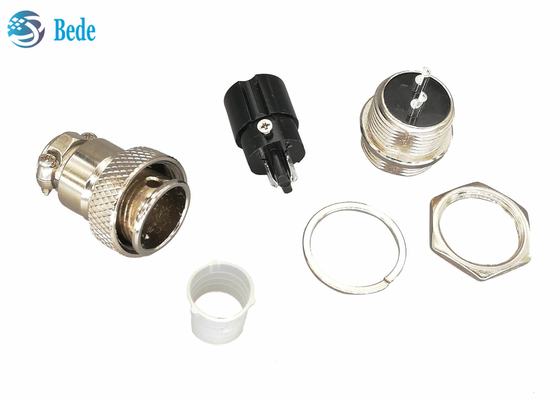

2 Pin 16MM Circular Gx16 Aviation Connector Panel Mount Connector Male And Female Sets 0

Electrical data

Rated Voltage	Rated Current	Insulation resistance	Contact resistance	Withstand voltage test
200V	7A	1500MΩ	0.003Ω	AC 1500V*1 min

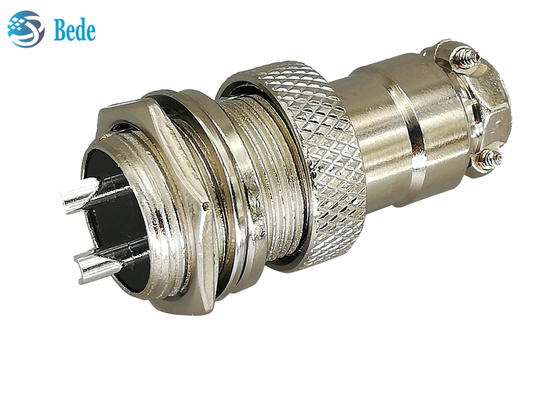

2 Pin 16MM Circular Gx16 Aviation Connector Panel Mount Connector Male And Female Sets 1

Application

Widely used in data acquisition systems, computer automation measurement and control systems, mechnical equipment, audio/video communications, automotive and electronic connector of aviation, space light, post and telecommunications, computer, navigation and various kinds of instruments, CNC machine

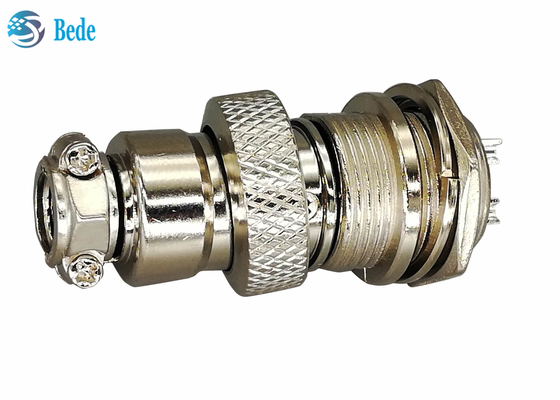

2 Pin 16MM Circular Gx16 Aviation Connector Panel Mount Connector Male And Female Sets 2

other families

Series products are in stock, 2 pins, 3 pins ... 10 pins, and straight gx12 gx16 gx20 aviation connector also, back to product catalog to know more or contact us directly

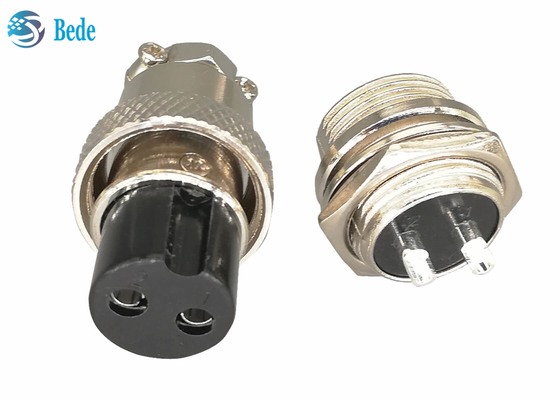

2 Pin 16MM Circular Gx16 Aviation Connector Panel Mount Connector Male And Female Sets 3
